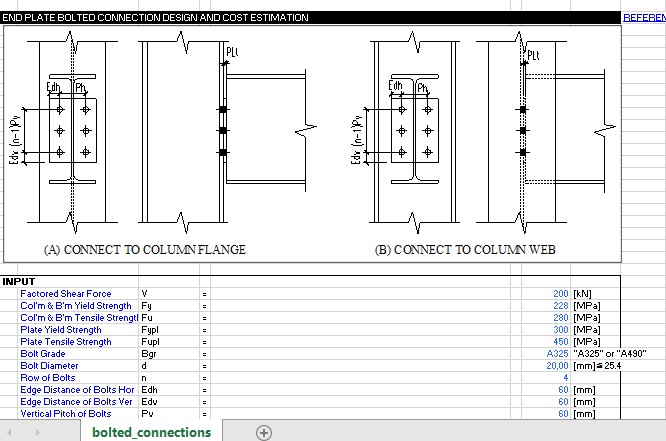

End Plate Bolted Connection Design and Cost Estimation Spreadsheet
12 November 2022End Plate Bolted Connection Design and Cost Estimation Spreadsheet
An end plate connection consists solely of a vertical plate shop-welded to the end of the web transverse to the axis of the beam with fillet welds on each side of the web.
The field connection is made by bolting the end plate to the flange or web of the supporting member.
