Estimation of Soil Improvement by Vibro Replacement Spreadsheet (Priebe’s Method)

Soil improvement is a crucial aspect of geotechnical engineering, particularly in areas with weak or compressible soils. One of the most effective methods for enhancing soil stability is vibro replacement, which involves the installation of stone columns to improve load-bearing capacity and reduce settlement. Among the various design approaches, Priebe’s method is widely used to estimate the effectiveness of vibro replacement in different soil conditions.

This article explores the principles behind vibro replacement, the application of Priebe’s method, and its benefits for ground improvement projects.

What is Vibro Replacement?

Vibro replacement, also known as stone column technique, is a ground improvement technique used to enhance the engineering properties of soft or loose soils. The process involves the following steps:

1. A vibratory probe is inserted into the ground to displace and compact the surrounding soil.
2. Granular material (crushed stone or gravel) is added into the hole and compacted in layers.
3. The process is repeated to form columns of compacted stone, which reinforce the weak soil and increase its load-bearing capacity.

These stone columns help reduce settlement, improve drainage, and enhance the overall shear strength of the soil, making the ground suitable for construction projects.

Understanding Priebe’s Method for Soil Improvement Estimation

Priebe’s method is a widely accepted analytical approach for estimating the effectiveness of vibro replacement. It provides a systematic way to calculate the degree of soil improvement based on the area replacement ratio and the modulus of deformation of the improved soil.

Key Parameters in Priebe’s Method:

1. Area Replacement Ratio (Ar) – This is the ratio of the stone column area to the total treated area. A higher ratio results in greater improvement.
2. Modulus Improvement Factor (MIF) – This factor helps estimate the increase in soil stiffness and bearing capacity due to stone columns.
3. Settlement Reduction Factor (SRF) – This factor determines the percentage reduction in total settlement after vibro replacement.
4. Stress Distribution Improvement – The method considers how load redistribution occurs between the stone columns and surrounding soil.

Steps in Applying Priebe’s Method:

1. Determine the soil properties – Initial soil conditions, including strength, compressibility, and permeability, are assessed.
2. Calculate the area replacement ratio (Ar) – This depends on the spacing and diameter of stone columns.
3. Estimate the improved soil modulus – The new modulus of deformation is calculated based on empirical relationships provided in Priebe’s method.
4. Evaluate settlement reduction – The final settlement of the treated ground is estimated by comparing the improved and unimproved conditions.

Benefits of Vibro Replacement Using Priebe’s Method

• Enhanced Load-Bearing Capacity – Stone columns distribute loads more effectively, allowing for safer and more stable construction.
• Reduction in Settlement – Priebe’s method helps engineers predict and minimize settlement, reducing risks for buildings and infrastructure.
• Improved Drainage – The granular columns facilitate water dissipation, reducing the risk of soil liquefaction in seismic regions.
• Cost-Effective Ground Improvement – Compared to deep foundations, vibro replacement is a more economical alternative for improving soil properties.

Conclusion

Vibro replacement is a proven technique for improving weak soils, and Priebe’s method provides a reliable way to estimate the effectiveness of this approach. By considering key soil parameters and design factors, engineers can optimize ground improvement projects to ensure long-term stability and performance.

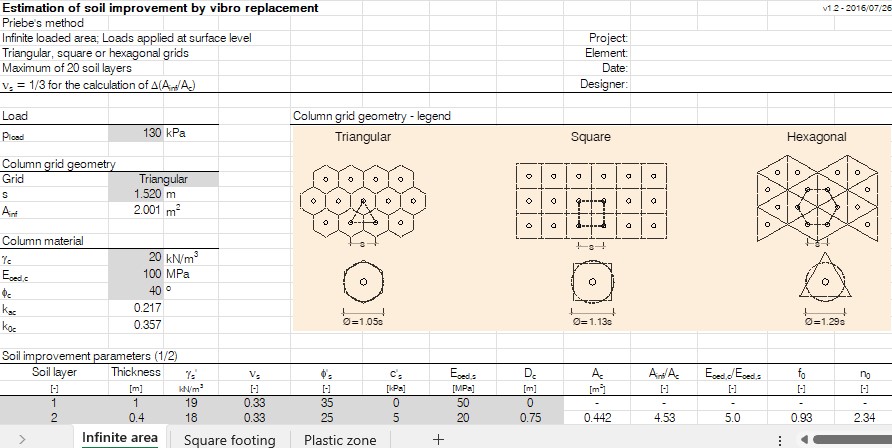

For a practical tool to assist with vibro replacement design, check out our Estimation of Soil Improvement by Vibro Replacement Spreadsheet to automate calculations and improve efficiency.
