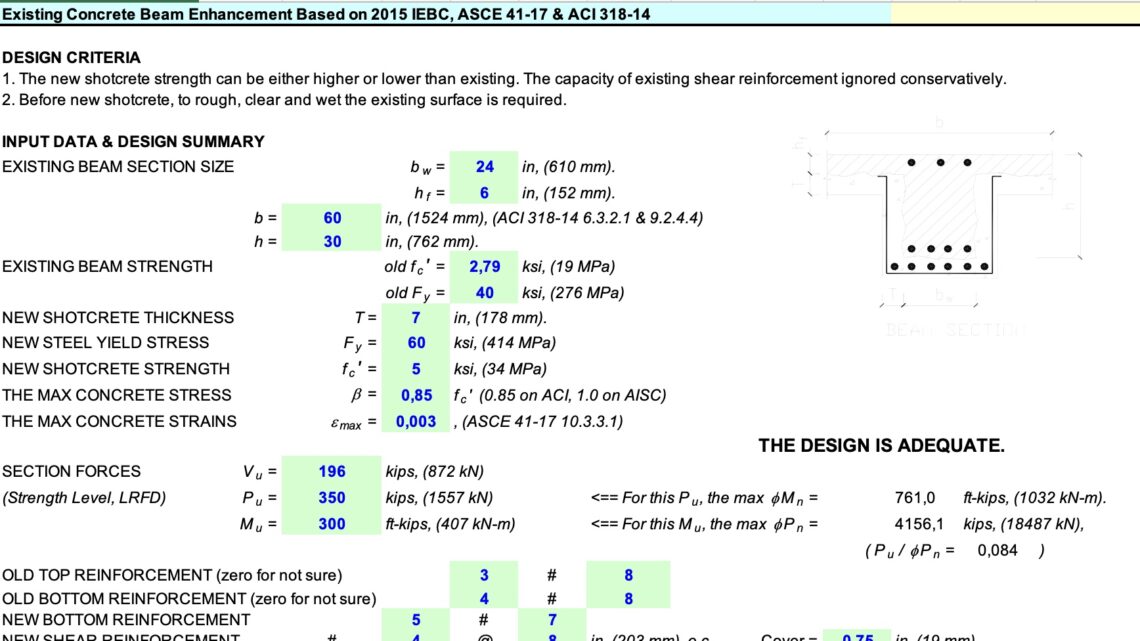

Existing Concrete Beam Enhancement Based on 2015 IEBC ASCE 41-17 & ACI 318-14 Spreadsheet

Learn how to enhance existing concrete beams for improved strength and durability. Discover innovative methods and download a free spreadsheet to simplify your calculations.

Why Enhance Existing Concrete Beams?

Concrete beams are critical components of many structures, but over time, they can weaken due to factors like aging, increased loads, or environmental damage. Enhancing these beams is essential to ensure safety, extend their lifespan, and meet modern engineering standards. Whether you’re dealing with a residential building, a bridge, or an industrial facility, beam enhancement can save costs compared to full replacement.

Common Methods for Enhancing Concrete Beams

Here are some proven techniques for strengthening existing concrete beams:

1. External Reinforcement:
   • Use carbon fiber-reinforced polymer (CFRP) sheets or steel plates to add strength to the beam’s surface.
2. Concrete Jacketing:
   • Add a new layer of concrete around the existing beam, often reinforced with steel bars or mesh.
3. Post-Tensioning:
   • Introduce high-strength steel tendons to apply compressive forces, improving the beam’s load-bearing capacity.
4. Epoxy Injection:
   • Repair cracks and restore structural integrity by injecting epoxy resin into damaged areas.
5. Section Enlargement:
   • Increase the beam’s cross-sectional area by adding concrete and reinforcement to its sides or bottom.

Key Considerations for Beam Enhancement

Before starting any enhancement project, consider the following:

• Structural Assessment: Conduct a thorough inspection to identify weaknesses and determine the best enhancement method.
• Load Requirements: Calculate the current and future loads the beam must support.
• Material Compatibility: Ensure new materials (e.g., CFRP, epoxy) are compatible with the existing concrete.
• Cost and Time: Evaluate the cost-effectiveness and timeline of each method.
• Compliance: Ensure the enhancement meets local building codes and standards.

Introducing the Free Beam Enhancement Spreadsheet

To simplify your calculations and planning, we’ve developed a free spreadsheet tool designed specifically for enhancing existing concrete beams. This user-friendly tool helps you:

1. Assess Beam Conditions:
   • Input data like dimensions, material properties, and existing damage to evaluate the beam’s current state.
2. Calculate Load Capacity:
   • Determine the beam’s load-bearing capacity before and after enhancement.
3. Compare Enhancement Methods:
   • Analyze the effectiveness of different techniques (e.g., CFRP, concrete jacketing) based on your project’s requirements.
4. Generate Reports:
   • Create detailed reports for documentation and compliance purposes.

How to Use the Beam Enhancement Spreadsheet

Here’s a quick guide to getting started:

1. Download the Spreadsheet:
   • Access the free tool from our website and open it in your preferred software (e.g., Excel, Google Sheets).
2. Input Data:
   • Enter details like beam dimensions, material properties, and load requirements.
3. Run Calculations:
   • Let the spreadsheet perform the necessary calculations to assess the beam and recommend enhancement methods.
4. Review Results:
   • Analyze the output to determine the best approach for your project.
5. Customize and Share:
   • Modify the spreadsheet to suit your specific needs and share it with your team.

Benefits of Using the Spreadsheet

• Time Savings: Automate complex calculations and focus on implementation.
• Accuracy: Reduce errors with pre-built formulas and templates.
• Flexibility: Adapt the tool to various beam types and enhancement methods.
• Cost-Effective: Avoid expensive software by using this free resource.

Real-World Applications of Beam Enhancement

• Bridges: Strengthen aging bridge beams to handle increased traffic loads.
• Buildings: Enhance beams in residential or commercial structures for safety and compliance.
• Industrial Facilities: Improve beams in factories or warehouses to support heavy machinery.
• Historical Structures: Preserve and strengthen beams in heritage buildings without compromising their aesthetics.
