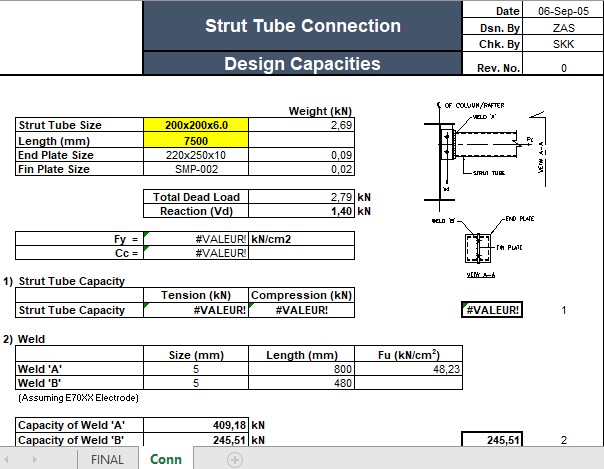

Strut Tube Connection Design Capacities Spreadsheet

In the world of construction, efficiency, durability, and adaptability are paramount. One critical innovation that addresses these needs is the strut tube connection system. This versatile method has become a go-to solution in projects ranging from industrial buildings to commercial structures. But what makes it so indispensable? Let’s dive into the details.

What is a Strut Tube Connection?

A strut tube connection refers to a framework of interconnected steel or aluminum tubes designed to support loads and provide structural stability. These systems often use strut channels (metal tracks) to connect tubes securely, ensuring a robust and modular assembly.

Key Features of Strut Tube Connection

1. Versatility: Strut tube connections can adapt to a variety of applications, from electrical and plumbing installations to seismic bracing systems.
2. Ease of Installation: With pre-fabricated components and bolt-on assembly, installation becomes quick and straightforward, reducing labor costs.
3. Adjustability: The modular nature allows for on-site adjustments without specialized tools, making it ideal for projects requiring flexibility.
4. Durability: Made from high-grade materials, these connections withstand significant stress, environmental exposure, and vibrations.
5. Aesthetic Appeal: When polished or coated, strut tube systems provide a clean, professional finish that’s particularly valuable in exposed installations.

Applications in Construction

Strut tube connections are incredibly versatile, finding applications across multiple sectors:

• Building Frameworks: They serve as the backbone for secondary structures, including mezzanines and platforms.
• HVAC Systems: Strut tube assemblies are used to support ductwork, ensuring proper alignment and stability.
• Electrical & Plumbing: These connections are widely used for routing and supporting cables, conduits, and piping systems.
• Solar Panel Installations: Their adaptability makes them a preferred choice for mounting solar arrays, offering durability and alignment precision.
• Seismic Bracing: Strut tubes enhance safety by stabilizing critical systems in earthquake-prone regions.

Advantages of Strut Tube Connection Systems

1. Cost-Effective: By reducing the need for custom fabrication, these systems cut down overall project expenses.
2. Scalability: Whether you’re working on a small residential project or a sprawling industrial facility, the modularity of strut tube connections fits projects of all sizes.
3. Sustainability: Many manufacturers offer eco-friendly options with recyclable materials, contributing to greener construction practices.
4. Reduced Downtime: The simplicity of assembly means less time on-site, ensuring projects stay on schedule.

Best Practices for Using Strut Tube Connections

1. Choose the Right Material: For outdoor or corrosive environments, opt for galvanized or stainless steel to extend lifespan.
2. Follow Load Guidelines: Always adhere to manufacturer’s load ratings to ensure structural integrity.
3. Ensure Proper Alignment: Use laser levels or alignment tools to guarantee precision during installation.
4. Regular Maintenance: Periodic inspections can prevent wear and tear, prolonging the system’s life.

Future Trends in Strut Tube Connections

As technology advances, strut tube systems are expected to evolve further:

• Smart Components: Integration of sensors for real-time load monitoring.
• Improved Materials: Lightweight yet stronger alloys for enhanced performance.
• Sustainability: Increased use of recycled materials and energy-efficient manufacturing processes.

Conclusion

Strut tube connections are more than just a construction tool; they’re a cornerstone of modern building techniques. Their combination of versatility, durability, and cost-efficiency makes them an essential component for contractors and engineers alike. Whether you’re embarking on a new project or retrofitting an existing structure, leveraging the power of strut tube connections can significantly boost your project’s success.
